FUSE AUTO CHANGEOVER SYSTEM (FACS)

Type I & Type II Systems both approved by RDSO as per specification no. RDSO/SPN/209/2012 Rev.2.0

TYPE I: 32 Fuse System – 0.6A to 4A

Home
/
FACS
Download Brochure
Download Installation Manual

Scope:

Fuse Auto Changeover System is intended to monitor the intactness of fuses that are used in the signalling circuits in cabins. Whenever any fuse blows, the circuit automatically changes over to a spare fuse provided in the system. The change-over to spare fuse in instantaneous & there is no break in the signalling system. Hence, it prevents failure caused due to a blown fuse. It also gives an audio-visual alarm for the blown fuse.

Enquire Now

Features:

We have intentionally never developed a stylistic formula for our work, which is why our projects never quite look or feel the same. Each of our spaces is the result of our ability to listen.

  • 19’’ Rack mounting with less than 4U height (Additional brackets are supplied for Relay Rack mounting)
  • System is designed to monitor 32 fuses of 0.6A to 4A of any voltage (12V, 24V, 60V, 110V AC/DC) of G type or any other type
  • Continuously monitors the status of both Main & Spare fuses
  • Automatic Changeover to a Spare fuse on failure of the Main Fuse in less than 20 mS
  • Modular design
  • System Operates with N+2 wires
  • Current drain from the main system is very low
  • Provides Audio/Visual alarm on failure of any fuse
  • Push Button to test whether all indications are working
  • The audio alarm is resettable by push button
  • Operating Voltage: 110V AC (Optionally 60V, 24V DC)
  • System comprises of 8 cards for monitoring 4 fuses each & one power card
  • Fuses conform to IEC-127 Standards
busico
Components

Front Panel Components on Power Card:

  • Power ON indication
  • Input Power fuse
  • Test push button
  • Buzzer Reset push button
  • Common Fuse Fail indication (Flashing)

Front Panel Components on Each Sensing Module:

  • 4 Spare fuses
  • Reset Push Button
  • Red & Green LEDs for indicating status of Main & Spare fuses

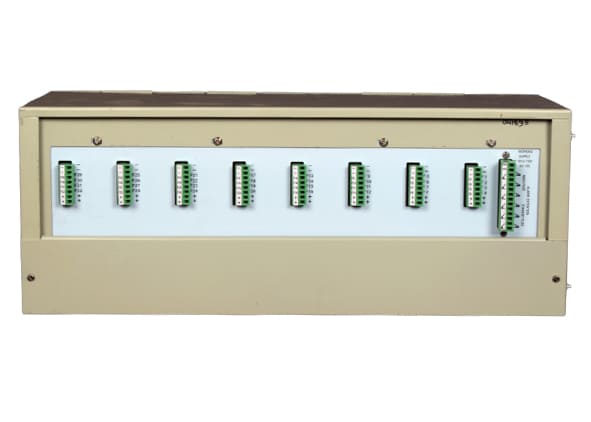

All terminations are provided on rear side.

Accessories:

Optional Accessories for Remote indications

  • Power ON indication
  • Input Power fuse
  • Test push button
  • Buzzer Reset push button
  • Common Fuse Fail indication (Flashing)

Details to Be Specified By The Customer: Voltage rating of fuses

  1. Current rating of fuses
  2. Operating voltage of the system
  3. Quantity requirement of CAVU

TYPE II : 24 Fuse System – 4A to 10A

FUSE AUTO CHANGEOVER SYSTEM (FACS)

Scope:

Fuse Auto Changeover System is intended to monitor the intactness of fuses that are used in the signalling circuits in cabins. Whenever any fuse blows, the circuit automatically changes over to a spare fuse provided in the system. The change-over to spare fuse in instantaneous & there is no break in the signalling system. Hence, it prevents failure caused due to a blown fuse. It also gives an audio-visual alarm for the blown fuse.

Enquire Now
FUSE AUTO CHANGEOVER SYSTEM (FACS)

Features:

We have intentionally never developed a stylistic formula for our work, which is why our projects never quite look or feel the same. Each of our spaces is the result of our ability to listen.

  • 19’’ Rack mounting with less than 4U height (Additional brackets are supplied for Relay Rack mounting)
  • System is designed to monitor 24 fuses of 4A to 10A of any voltage (12V, 24V, 60V, 110V AC/DC) of G type or any other type
  • Continuously monitors the status of both Main & Spare fuses
  • Automatic Changeover to a Spare fuse on failure of the Main Fuse in less than 20 mS
  • System Operates with N+2 wires
  • Current drain from the main system is very low
  • Provides Audio/Visual alarm on failure of any fuse
  • Push Button to test whether all indications are working
  • The audio alarm is resettable by push button
  • Operating Voltage: 110V AC (Optionally 60V, 24V DC)
  • System comprises of 8 cards for monitoring 4 fuses each & one power card
  • Fuses conform to IEC-127 Standards
busico
Components

Front Panel Components on Power Card:

  • Power ON indication
  • Input Power fuse
  • Test push button
  • Buzzer Reset push button
  • Common Fuse Fail indication (Flashing)

Front Panel Components on Each Sensing Module:

  • 4 Spare fuses
  • Reset Push Button
  • Red & Green LEDs for indicating status of Main & Spare fuses

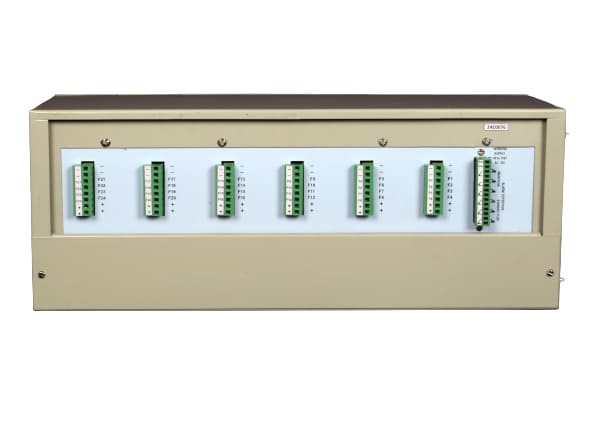

All terminations are provided on rear side.

Accessories:

Optional Accessories for Remote indications

  • Common Remote Alarm Unit that can be used to extend the Audio/Visual alarm to a remote & convenient place
  • GSM Based SMS unit that can send messages to 5 pre-defined numbers when a fuse is blown or restored to the circuit

Details to Be Specified By The Customer:

  1. Voltage rating of fuses
  2. Current rating of fuses
  3. Operating voltage of the system
  4. Quantity requirement of CAVU

Other type of Systems like 16 or 20 Fuse, Fuse Auto Changeover Systems are also available
